Brompton World Championship racers in obligatory jacket and tie depart from Blenheim Palace. The dress code suggests both the folding bike’s roots in English quirkiness and its usefulness for urban commuting.
There’s no better way to take possession of a city than on a compact folding bike. Neighborhoods that would be discouragingly distant on foot become only minutes away. Distant communities that might otherwise go unexplored become riding destinations with the option of making part of the trip on a bus or train next to one’s unobtrusively folded mount. A folder can be carried into shops and restaurants, avoiding the inconvenience and unreliability of chaining up outdoors. Owning a truly compact folder is like having a bike in your back pocket. It can shrink an entire city. Not only does such a bike take you to fresh places in town, it does so without compromising the spatial immediacy of walking. Philippe Starck has said, “frankly, it isn’t Manhattan that interests me. The center of Manhattan is very civilized, a nice international city. I am more interested in the passion of New York, and that’s why I go with my motorcycle or bicycle to the Bronx, Queens and Harlem. There, you are like a spectator in front of the most beautiful drama in the world. Every corner of the street seems like an opera stage, a stage for drama. The vibrations there are very strong.”
New York is now following the lead of European cities like Copenhagen, where streets have been reclaimed for pedestrians and cyclists. Janette Sadik-Kahn, the city’s progressive Department of Transportation Commissioner, hired the visionary Danish urban planner Jan Gehl in her effort to favor people over cars. Even with initiatives to accommodate bicyle commuting by allowing bikes in office buildings, go-anywhere small-wheeled folding bikes have distinct qualities that complement New York’s increasing bike-friendliness and will always give them advantages in cities. Their popularity is exploding. As little as five years ago, a Brompton folding bike was a rare sight in New York. Now they’re everywhere.
It’s hard to say whether demand or the seductive challenge of designing a better folder is more at work, but recent years have seen a flood of new folding bike designs enter the market. Most are aimed at buyers who intend to fly or drive a folded bike somewhere, then ride it, often in a vacation spot. These typically have wheels of 20-inch diameter or more. A subset of 16-inch wheeled bikes that can be carried about indoors target those who use a folding bike as an everyday part of city life. In a place like New York, after which Kryptonite Locks names its most secure products (like the “New York Fahgettaboudit” lock) the chief advantage of these bikes is theft resistance. However, other advantages are reason enough to own a compact folder. They take up less space in a small apartment, lend themselves to intermodal commuting, and allow one to take a bike, folded, straight through a public building like Chelsea Market, instead of locking it outside and doubling back for it. You’d like to ride to work today, but rain is forecast for the afternoon? Go ahead and ride in, and bring your bike home on the bus if the rain appears as scheduled.
An F-frame Moulton is superimposed on a standard bicycle. Small wheels are geared to turn farther with each pedal stroke. Alex Moulton saw advantages in small wheels that carry on in today’s urban-oriented folding bikes.
The small-wheeled performance bicycle was pioneered in England by Sir Alex Moulton, whose F-frame model with 17-inch wheels was introduced in 1962. By 1965, his company was England’s second largest single-brand bicycle maker. According to The Spaceframe Moultons, by Tony Hadland, Alex Moulton observed that, “with the exception of vehicles for use on soft ground, such as tractors, wheel sizes for virtually all vehicles have decreased as design has evolved – all modern cars, railway locomotives and aircraft are ‘small-wheeled’ compared to their Victorian or Edwardian predecessors.” Moulton’s original intent was to free up space above the wheels for storage and allow step-through mounting. The naturally greater rigidity of smaller wheels coupled with high inflation pressure insured that there would be no increase in rolling resistance compared to large wheels. To soften the harsh ride that might otherwise result, Moulton added front and rear suspension. The suspension had the additional benefit of resulting in what Moulton called “a total advance over the high pressure unsprung large wheel in road-holding and comfort.” His design was also radical in its abandonment of the classic diamond-shaped frame. Moulton said that if “that quadrilateral bit of piping” were launched on the market today, its top tube would probably not be allowed for safety reasons. Moulton’s alternative “F-frame” was easier to get on, unisex, and one-sized.
Moulton was also aware that smaller wheels have less inertia, present a smaller face to the wind, produce less spoke turbulence, and more rigidly transmit the rider’s energy to the road, all enhancing performance. In 1982 he introduced a version that replaced the F-frame with a spaceframe on the same small wheels, further reducing the loss of energy through flexing. His theories were proven in 1984 when a spaceframe Moulton set the world speed record for a non-recumbent bicycle at 51.29 mph. Most Moultons are designed to come apart easily into two pieces for transport, but none fold. Nonetheless, the brand’s technical innovations, starting with the idea of a high-performance small-wheeled bike, have largely informed the design of today’s folding bikes. Bike Friday makes marketing points of the easy mounting that Moulton saw as essential and the performance he pioneered for small wheels, while the Brompton’s suspension concept first appeared on Moultons in the 1960s.
Radical technical innovations like Moulton’s and those of recumbent bicycles are suppressed by the International Cycling Union which regulates the Tour de France. Its rules don’t just perpetuate the basic bicycle form established by John Kemp Starley’s 1885 Safety Bicycle for the Tour but, by association, for mainstream bicycling. Much of the resurgence of recreational cycling in America owes to Lance Armstrong’sunprecedented 7 consecutive Tour de France victories. No surprise to anyone who knows the power of a product endorsement, everyday American cycling has taken on a more performance-oriented cast because of his heroic stature.
A public that associates large-wheeled bikes with Lance and small-wheeled ones with circus clowns will be surprised to know that almost all of the compromises made by folders have to do with folding rather than wheel size. The tighter the fold, the fewer the options. The five higher-quality bikes covered here are defined by the emphasis they put on one or the other and the ingenuity with which they narrow the gap between the two. The game not only makes for great design watching, but has larger implications for the way people inhabit cities.
Alex Moulton is pictured riding a Moulton F-frame bicycle, featured as number 580 in the chronologically numbered list of 999 significant products published in the 2005 Phaidon Design Classics series. (The Brompton folding bike is number 782.) An engineer who first developed suspension systems for aircraft and mini-cars, Moulton was poised to resolve the harsh ride that might otherwise characterize a small-wheeled bicycle.
The architecture historian and critic Reyner Banham rides a Moulton F-frame in swinging 60s London. Banham was a lifelong bicycle commuter and a great believer in the Moulton, about which he published an article in the 60s called “A Grid on Two Farthings.” It champions the Moulton not just as a superior bicycle, but a refutation of the idea “that the centuries have given a final shape, perfect beyond improvement, to certain basic tools such as the hammer and the oar, that generations of trial and error have produced working forms almost indistinguishable from platonic absolutes” including the diamond frame bicycle which had presumably “already achieved its ultimate norm or form around 1900.” Since the Moulton, Banham writes, “bicycle thinking can never be the same again, and there can be no more nonsense about permanent and definitive forms, for even the Moulton is capable of improvement.” Banham correctly foresaw small-wheeled progeny but incorrectly predicted that the revolution Alex Moulton had wrought “looks likely to carry his name into the whole field of small-wheeled bikes.” The field has emerged, but if it has a name, it’s “folder”, after the most obvious improvement left to the Moulton’s descendants.
Banham rides a Bickerton folding bike at Silurian Lake, California in this photo from his 1982 book, Scenes in America Deserta. (photo: Tim Street-Porter) The bike was designed by Harry Bickerton and manufactured in the UK between 1971 and 1991. Its ungainliness inspired Banham’s and Bickerton’s fellow Briton Andrew Ritchie, inventor of the Brompton, to do better. Patented in 1979, the Brompton has been continually improved but retains its fundamental original design. (Banham is reported by one source to have eventually been a Brompton rider, although he remained true to Moulton, eventually owning five models.) Small-wheeled bikes are a particularly English phenomenon. Phaidon Design Classics says of the Brompton, “the development of this bike, like several other significant small-wheeled folding bicycles, has occurred mostly in the UK, and mostly carried out by men usually quite unconnected with the world of bicycles, working out ideas on kitchen tables or in garden sheds in the tradition of quirky British inventors.”
Bike Friday Tikit
Bike Friday (think “Man Friday”) bills its products as performance bicycles that happen to fold. As former bike racers, company founders Hanz and Alan Scholz are attuned to performance, but with a particularly inventive streak. They’ve taken on challenges as daunting as a folding recumbent tandem and a bike that converts from tandem to single-rider. Like standard bicycles, Bike Fridays are available in multiple sizes and can be customized. (The company prides itself on accommodating even those with special needs.) The folding feature of most Bike Friday models is intended to allow transport of bikes to distant locations in hard cases. They appeal to many older cyclists who are more likely to have the means and free time for the “performance that packs” travel riding to which this lends itself. The company’s recently launched Tikit brings the performance emphasis of Bike Friday to 16-inch wheels. Although it’s not the smallest fold out there, it’s the fastest. Given its potential for customization and performance, the Tikit most closely resembles a standard bike among those discussed here. It’s the clear choice for anyone who wants both a city folder and a light touring bike in one package. Made in America, parts replacement is easy. Bike Friday’s frames also come with a lifetime warranty.
Nationality: American, based and made in Eugene, Oregon
Introduced: 2007
Wheel size: 16 inch / 349 cm
Frame material: steel
Weight: 25 pounds for a medium size “Standard” model
Speeds: 1 to 27
Ride quality: excellent
Folded size: listed as 24H x 35L x 15W, varies with model size and handlebars
Folding speed: 10 seconds / 5 seconds with hyperfold option (adds $300)
Rolls folded: well
Carries folded: fairly well
Stands folded: fairly well
Cost: from $1,098
Pro: multiple sizes, highly customizable, easily replaced American parts, lifetime frame warranty
Con: large folded size
The Tikit Hyperfold demonstrated
Brompton
The Brompton’s 10.6″ wide fold allows it to unobtrusively occupy an aisle in a bus or the space under a café table. A folding bike’s accommodation to city life is a game of inches.
Brompton makes only one frame style, and it’s as if all of the company’s creative energy has gone into its perfection. No 16-inch wheel folding bike folds into such a compact package. Quickly lifting the Brompton’s seat post causes the rear wheel and triangle to swing under the frame, greatly reducing the bike’s length and allowing it to stand upright on its own in what’s known as a half-fold. This is enormously useful not just as a kickstand, but for taking the bike inside the corner deli and instantly folding it far enough to be a non-nuisance to others. Folding the bike entirely except for the steering post allows it to be pulled around by the handlebars as a compact package on caster-like wheels attached to the rear triangle, very much like a suitcase. The final move required for folding, lowering the seat, firmly pins the folded package together with the seatpost. The simplicity and effectiveness of this finishing touch makes the Brompton feel unimprovable. A simple block of rubber cushions the rear triangle against the seatpost, providing rear suspension. With “extremities” including the front fork, steering post, seat post and rear triangle available in titanium, the Brompton can shed a couple of pounds while gaining additional ride-softening. Dispensing with the three-speed rear hub and relying on two speeds can drop a few more pounds and make for a bike that’s very easy to carry and adequate to relatively flat urban terrain like most of New York’s. Bromptons come in a wide range of colors that can be independently applied to the main frame and to the extremities, allowing for a huge degree of personal expression.
Nationality: British design, made in London
Introduced: 1981
Wheel size: 16 inch / 349 cm
Frame material: steel
Weight: from 20 pounds, including seat and pedals
Speeds: 1, 2, 3 or 6
Ride quality: good
Folded size: 22.2H x 21.5 L x 10.6W
Folding speed: 20 seconds
Rolls folded: very well
Carries folded: very well
Stands folded: very well
Cost: from $1,000
Pro: Very compact, stable and maneuverable when folded; rear suspension; personal expression opportunities with color
Con: cannot be customized or adjusted except for seat height.
The Brompton fold demonstrated
Dahon Curve
The Dahon Curve D3
Founded in 1982 by laser physicist David Hon, Dahon commands two-thirds of the world’s folding bike market and currently sells 35 models. If your local bike shop carries a folding bike, it’s most likely a Dahon. The bikes range from cheap and heavy with ephemeral parts to expensive and high-performance with durable components. The company’s only current 16-inch wheeled models, the Curve SL and D3, fall into respectable enough positions on this continuum. At $599, the Curve D3 is the most affordable bike considered here. In contrast to the way the Brompton folds into a tightly pinned-together package, the Curve’s folded shape is held together by magnets and rather floppy. Dahon’s are available with integrated floor pumps concealed in the seat post, a very elegant and useful feature.
Nationality: Los Angeles based, made in Asia and the Czech Republic
Introduced: 2007
Wheel size: 16 inch / 306 cm
Frame material: aluminum
Weight: 22.3 for SL / 25.4 for D3
Speeds: 9 for SL / 3 for D3
Ride quality: good
Folded size: 24.2H x 26.9L x 12.9W for SL / 25H x 26.1L x 13.3W for D3
Folding speed: 15 seconds
Rolls folded: fairly well
Carries folded: poorly
Stands folded: fairly well
Cost: $999 for SL / $599 for D3
Pro: light weight for SL / low cost for DL3
Con: doesn’t lock together well when folded
A Dahon Curve SL review and Curve D3 review

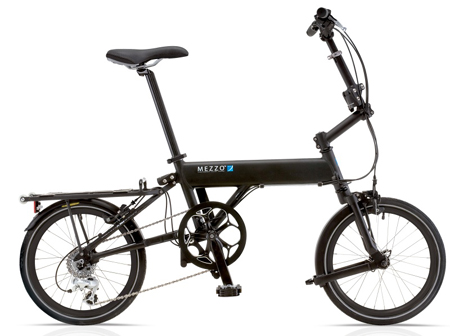

Mezzo
British engineer Jon Whyte, the Formula 1 and mountain bike designer, said of his Mezzo, “I spent eight to nine times more time on the development of this project than the work I did on the Whyte mountain bikes.” His sharp looking bike may just be Brompton’s worst nightmare. Its fold is not as small as the Brompton’s and requires an extra step, but its compactness and stability are a close second. In return for its slightly larger fold, the Mezzo outdoes Brompton with a standard rear hub that allows for more gearing options, a less flexible unjointed frame, and a larger range of handlebar positions, all contributing to greater performance and comfort. The Mezzo occupies territory halfway between the Brompton’s emphasis on fold and the Tikit’s on performance.
Nationality: British design, distributed by California’s Marin Bikes, made in Asia
Introduced: 2004
Wheel size: 16 inch / 349 cm
Frame material: Aluminum
Weight: from 24.25 pounds
Speeds: 4, 9 & 10
Ride quality: very good
Folded size: 24.8H x 27.2L x 12.2W
Folding speed: 20 seconds to unfold, 10 seconds to fold
Rolls folded: fairly well
Carries folded: fairly well
Stands folded: well
Cost: from $900
Pro: Approaches the Brompton’s compact, stable fold with a better ride, more adjustable fit and greater gearing options
Con: Requires an extra step to fold and doesn’t fold as small, compared to the Brompton

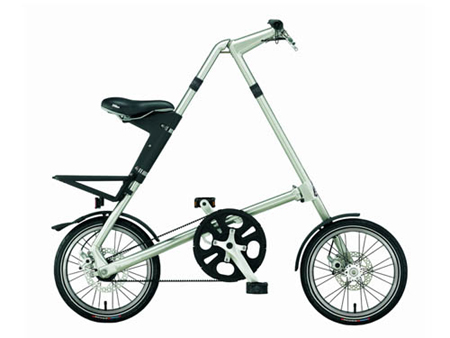

Strida
Designed by yet another British engineer, Mark Sanders, the Strida may have the most radical and elegant shape of any folding bike. It has a surprisingly comfortable, cruiser-like upright riding position. While its kevlar belt eliminates the grease and maintenance of a chain, it limits the bike to one speed (or two, at a steep 50% cost increase). This bike rivals the Brompton for intermodal potential, but provides a slower ride that’s best confined to fairly flat terrain. Nonetheless, it is certainly a more serious bike than the novelty of its shape might suggest. On buses or trains, the uniquely vertical nature of its fold makes it almost a walking stick for the standee, but its inability to stand upright on its own is a drawback. It can, however, be leaned against a wall with the brakes engaged so it doesn’t slide down.
Nationality: British design, made in Taiwan by brand owner Ming Cycle
Introduced: 1987
Wheel size: 16 inch / 306 cm (with 14 and 18 inch versions available)
Frame Material: Aluminum
Weight: 22 pounds
Speeds: 1 (with dual available at $1200)
Ride quality: Fair
Folded size: 45H x 20L x 9W for standard model Strida 5.0
Folding speed: 7 seconds
Rolls folded: very well
Carries folded: well

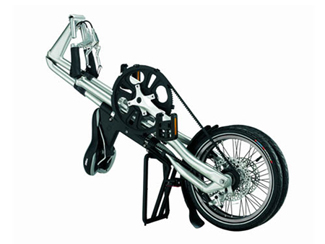

Stands folded: not upright, but in a near horizontal position (image above); leans well
Cost: from $800
Pro: compact folded footprint; clean, maintenance-free drive train
Con: not comfortably ridden for longer distances
Test Ride
All of the bikes described above except the Dahon Curve SL are stocked at bfold in Manhattan.
Most are also stocked at Trophy Bikes in Philadelphia.
